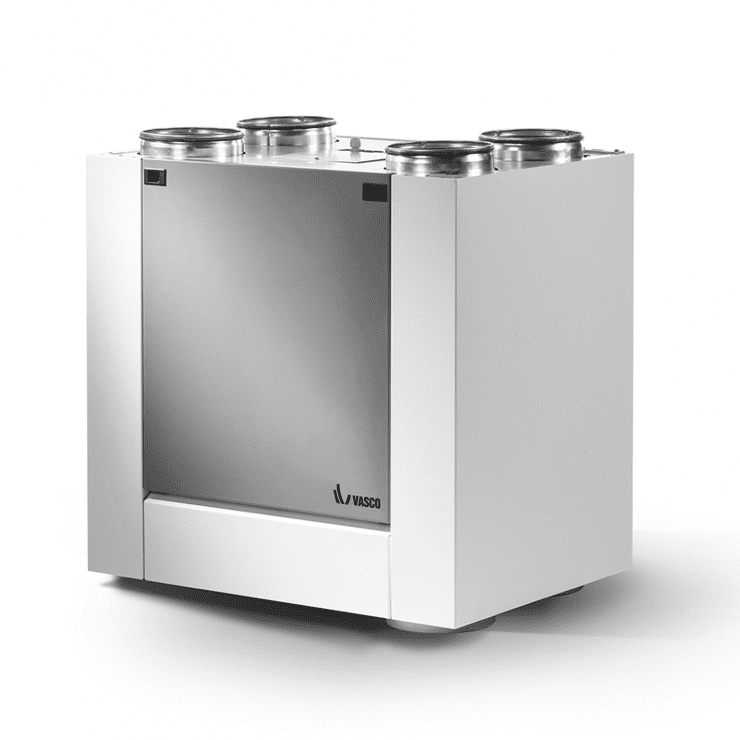

Vasco X350 Ventilation System

With a capacity of 350 m³/h at 150 Pa, the Vasco X350 unit is the ideal ventilation system with heat recovery for medium residential buildings. The continuous supply of fresh air in combination with the discharge and heat recovery of heated air ensures a healthy indoor climate.

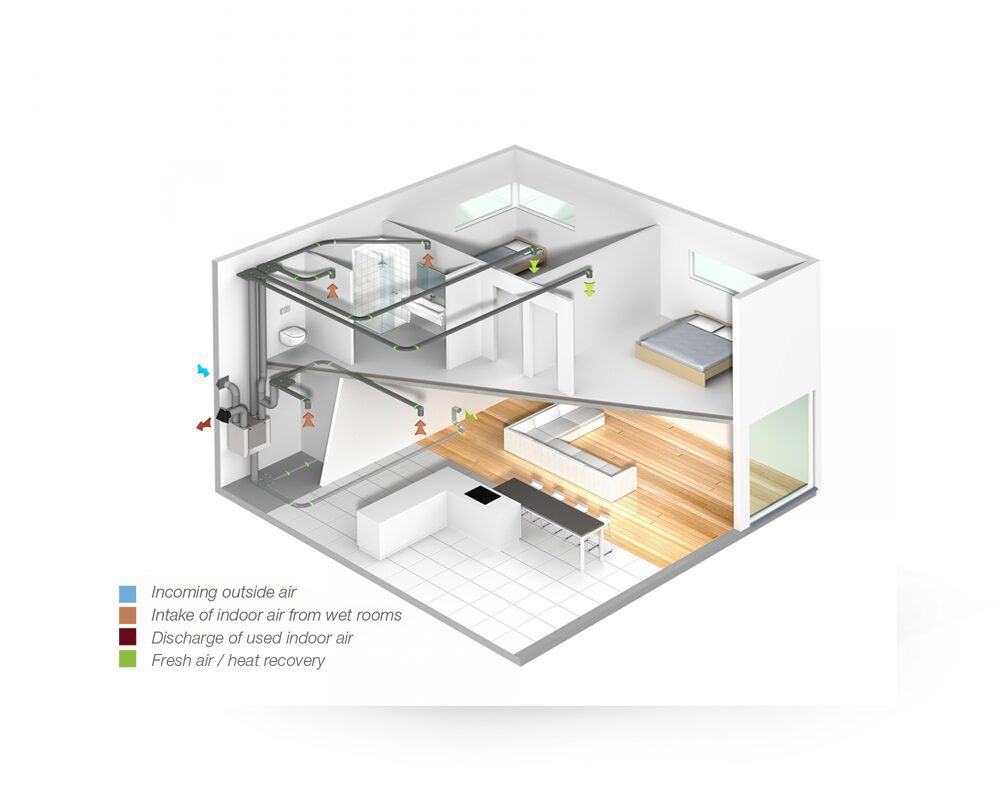

This compact ventilation unit provides air suction in so-called wet rooms, such as bathrooms, toilets, washrooms, storage rooms, and kitchens. At the same time, fresh air is directed into the dry rooms, i.e. the living and bedrooms.

Request a Free Quote

Why Vasco X350 centralised ventilation system by Partel?

  • Ideal for homes with one living room, one or two bedrooms, an (open-plan) kitchen, one bathroom and possibly a separate toilet.
  • Very high efficiency
  • Extremely low consumption
  • Significant E-level reduction
  • Automatic constant air flow control

IMPROVED AIR QUALITY – Vasco’s D system boasts an electrostatic and antibacterial filter. Thus, the cleanest and freshest air flows into the living space, without any dust or pollen.

TEMPERATURE  – Through heat recovery, the D system heats the supplied fresh air to a comfortable temperature. In addition, Vasco’s D system also boasts a full bypass, which provides fresher summer night ventilation.

SILENT VENTILATION

Thanks to their EC motor, these centrifugal fans with large, curved blades are extremely efficient, quiet and very easy to maintain. The automatic fan control ensures a quiet start-up and a metered increase in speed. The combination of the Vasco ventilation units with the Vasco EasyFlow air ducts guarantees the ultimate comfort of a super-silent ventilation system.

NOISE LEVEL FROM OUTSIDE: Fresh air comes in through the air ducts and passes through the noise-reducing ventilation unit. Then it is distributed through silent air ducts to the dry rooms.

NOISE LEVEL FROM INSIDE: Both the supply and the discharge process are mechanical, using two fans and two duct systems. The extremely quiet DC fans in combination with the internal acoustic insulation make this ventilation unit the market reference product.

HIGH LEVEL OF ENERGY-EFFICIENCY

To keep the supply of fresh air and the discharge of used air in balance, the ventilation unit is equipped with two extremely economical fans. The consumption of these two fans, combined with the heat recovery feature, compensates significantly for the additional consumption of the supply air fan. The extremely efficient X350 fan in the Vasco ventilation system ensures low energy consumption.



MAINTENANCE

The air filters in the D ventilation system are best cleaned with a vacuum cleaner every three to four months. Every 12 to 18 months the air filters need to be replaced. Every eight years, the duct system must be checked and, if necessary, cleaned by a specialist company.

COMFORTABLE INDOOR CLIMATE

Vasco X350 ventilation systems ensure a healthy and comfortable indoor climate throughout the year.

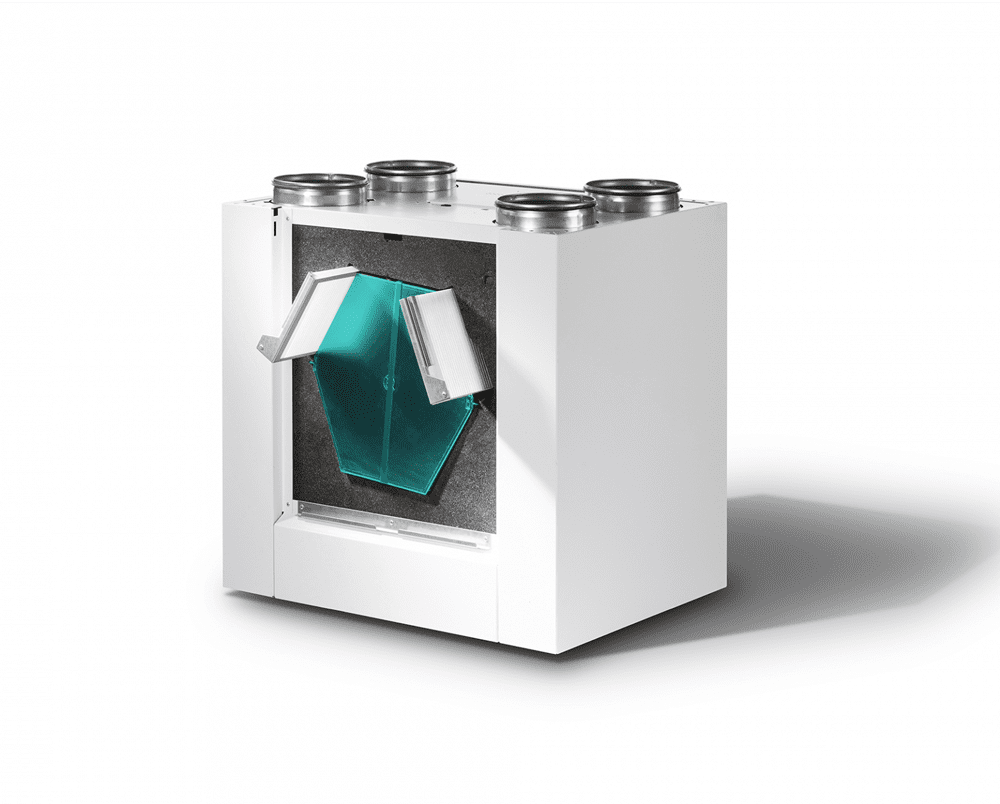

The unique heat exchanger supplies fresh outdoor air at a comfortable temperature to the inside of the home, preventing a cold sensation. Furthermore, the full bypass provides summer night ventilation, ensuring the home is optimally ventilated on hot summer nights.

Technical data

House type Medium-sized housing
Area (m2) 200-280
Number of bedrooms 03/05/22
Weight (kg) 45
Configurator (apartment connection) reversible (right is standard)
Supply voltage 230 V
Energy label A
Energy label with 1 sensor A
Energy label with 2 sensors A+
Airflow 350 m3/h at 150 Pa
Efficiency according to DIBt 90.60%
Maximum power consumption 165 W

Dimensions H x W x D (mm): 724 x 764 x 560

Standard model VASCO X350

  • Reversible apartment connection
  • Painted metal housing
  • Internal thermal and acoustic insulation
  • Countercurrent heat exchanger made of PS plastic with an efficiency of >90%
  • Radio switch
  • Contact for fireplace / extractor hood
  • Alarm contact
  • Building automation: 3-position contacts for external control; 0-10 V signal for external control
  • G4 air filter for discharge and F7 air filter for fresh air
  • Full bypass
  • Constant volume control

Optionally available with:

  • On-demand control
  • Preheating element
