Airtightness and MVHR – What is the real cost/saving?

Passive Airtightness & MVHR V Building regulations During our recent passive house designer course with Target Zero we considered the following – a cost comparison of a typical house designed to meet current building regulations and a house designed to achieve passive house levels of Airtightness including MVHR. The results were surprising and had the potential to save €20,000 over the life of the mortgage

  • €643/year = Cost of air leakage at 7/m3/m2/h – Current building regulations (N 50 of 5.74) Losses due to leakage and through required vents as per Part F
  • €96/year = Cost of air leakage at 0.6ac/h -Certified Passive house, Passive House has losses due to MVHR efficiency – losses based on 85% efficiency.
  • €547 = Annual difference in cost of air leakage between passive house levels and achieving building regulations

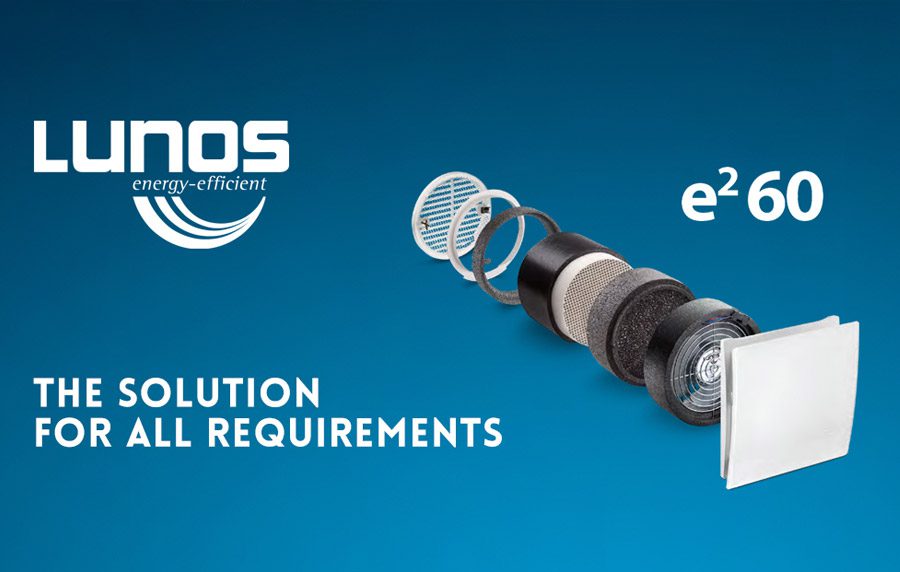

Payback timeframe for MVHR and Airtightness In order to consider the payback periods we will look at the supply and fit cost of Partel Airtight materials and a supply and fit price for a Lunos MVHR

Total cost of €8000 for Airtightness measures and mechanical ventilation Calculation of savings on a simple basis using annuity factor method over 30 years works out as: – 0.03/(1-(1+.03)-30 *€8000 => 4080 => Additional loan repayment cost per annum = €408 Additional annual saving from efficiency of Lunos MVHR system above centralised MVHR estimated at €100 pa (Each fan costs approximately €5.00 per annum) A building built to building regulations natural ventilation will have €548 more costs than a passive house just due to leakage. It will cost you €408 per year on loan repayment – so you still have a savings of €140.

  • €140.00 Annual saving from the above example.
  • €100.00 Additional saving by using Lunos MVHR ventilation system
  • €240.00 Total potential savings per annum from installing the above systems.

If we invested the €240.00 over the life of the mortgage we could save €8640 and earn interest of €11,417 to give total savings of approximately €20,000 over 30 years On top of the savings the occupants of the house will have the following benefits: –

  • Condensation is avoided in the structure
  • The formation of mould and structural damage is avoided
  • Pollutants are avoided in the air within the rooms
  • The noise-reduction mass in structural components is guaranteed
  • The insulating effect of structural components is guaranteed
  • The ability of ventilation systems to work properly is guaranteed

Much of the detailed analysis and workings that resulted in the figures are available but a standard 2 level house with a square footage of 200m2 was assumed. We also assumed an annual energy usage of €110 for a centralised system, a 30 year mortgage, typical masonry construction, identical insulation and building fabric for each house.
