The refurbishment of the historic Central Bank site into the iconic Central Plaza, which is a multi-phase scheme, is one of the largest and most prestigious construction projects being carried out in Dublin city centre, Ireland.
Partel was playing its part since the early stages of the restoration, and this year brought again its expertise in fire-rated vapour control systems, supporting the latest expansion scheme of the building with a two-storey glass-roofed structure, that completes the existing tower.
Teaming up with Castle Group, the plan for roof expansion involved passive fire protection measures and an appropriate airtightness strategy, using Partel’s IZOPERM PLUS A2 vapour control system.
Steel Roof Structure and Internal Wall
The design of the new steel roof construction has a complex geometric structure, following the exposed suspensions of the building – with cantilevering triangles. It consists of multiple steel RHS that are connected to each other by hidden connections. The contemporary structure is a monolithic steel frame without expansion joints. Quite a challenge in regard to thermal expansion.
For this project, fire protection of the roof structure and internal wall assemblies were top priorities, considering the specific requirements regarding stability, structural integrity and fire safety in the building.
Airtightness and Fire Protection

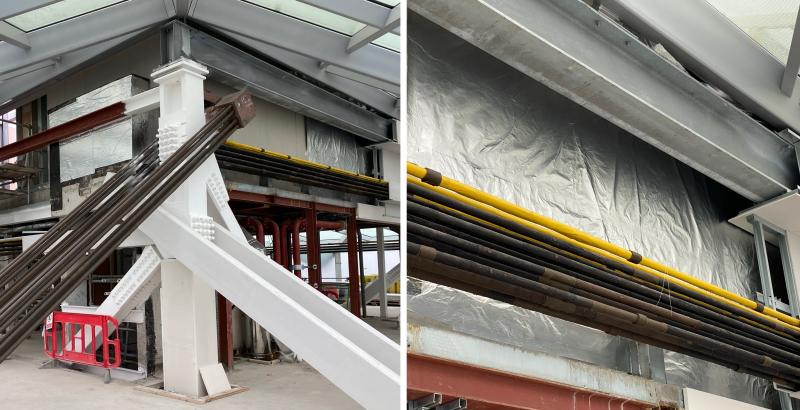

Partel’s Euroclass A2-s1,d0 product system – IZOPERM PLUS A2 membrane and ECHOSEAL ALU FR adhesive tape – were used in order to improve the fabric performance. The solid walls had to be airtight, insulated, and fire-resistant in order to ensure that what was designed could be delivered.
The team chose to deliver airtightness measure to external walls with an appropriate fire-rated vapour control system, such as IZOPERM PLUS A2, with high durability, mechanical strength, and moisture management properties. With unrivalled low emissivity of 0.05, the reflective surface can dramatically improve the thermal performance and prevent heat radiation. The team wanted to make sure a tested and compliant solution will be implemented, and the products will perform in a scenario where the building is exposed to a fire.
In addition, fire safety in this tall, high-risk building with a large number of visitors and tenants, with open spaces and mobility consideration, the IZOPERM PLUS A2 fire-rated membrane plays a crucial role when incorporated into the wider fire engineering strategy. The membrane offers superior levels of fire performance and a very limited contribution to fire, furthermore, during a fire it will not pose a risk of smoke inhalation for people, as it produces minimal to no smoke and does not release flaming droplets.

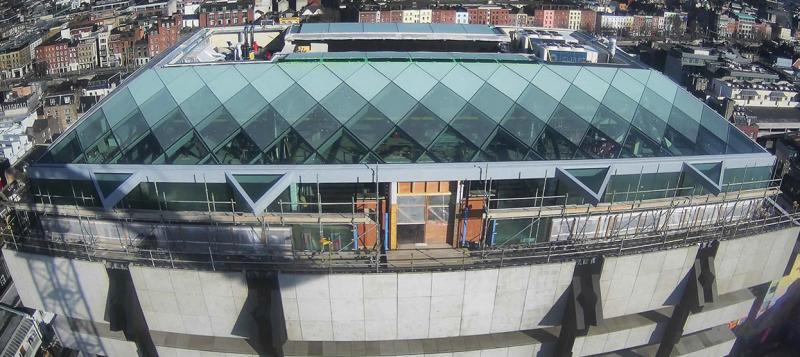

The steel roof construction was covered with 152 glass units to facilitate maximum light.
Designed by the Henry J. Lyons Architects, the rooftop venue incorporates a 360° viewing terrace of 15,500 sq ft, a crowning touch of this modern restoration project.
The previous phase scheme of the Central Plaza redevelopment improved the energy efficiency of the building, airtightness and thermal performance using the ECHOFOIL IZO membrane together with CONEXO MULTISEAL adhesive tape.
Project type: Extension of a Historic Commercial Building
Architect: Henry J Lyons
At Partel, our range of airtight product systems and fire-rated solutions includes compliant and certified materials for renovating and extending existing buildings. For specialized advice on your project, contact our Technical Support to speak to one of our experts.
