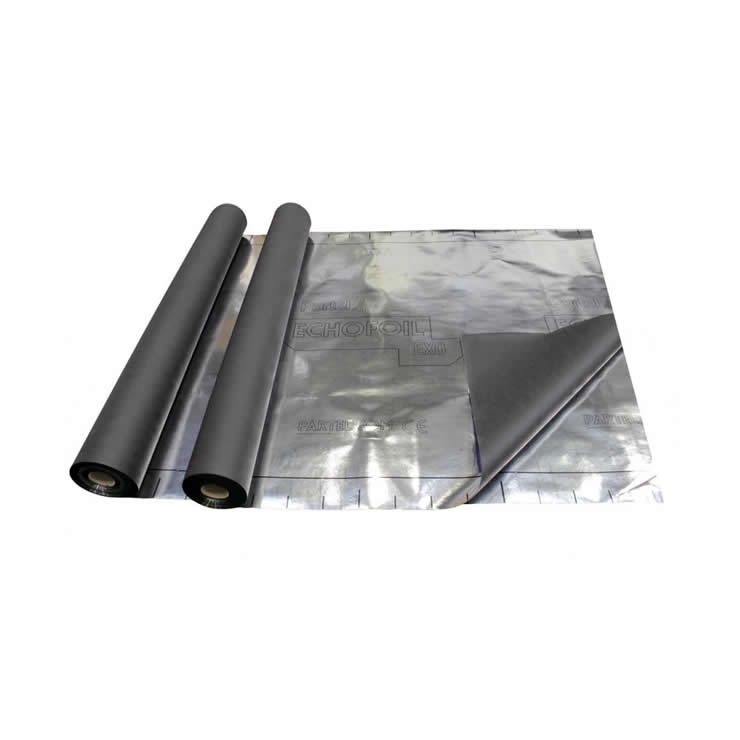

ECHOFOIL EXO – Reflective Breather Membrane

Reflective Breathable Membrane

The emissivity of a material is the ability of its surface to emit energy by radiation. The lower the emissivity value, the more reflective the material is – and the better the material performs as a thermal insulation layer in combination with an air gap. With an emissivity value of <0.05, the Partel ECHOFOIL EXO membrane improves thermal comfort and enhances airtightness in any type of building. Used in conjunction with ECHOFOIL IZO it increases thermal performance further and helps to deliver low U-values.



Buy Now

Why Partel ECHOFOIL EXO?

  • Low emissivity value <0.05
  • Enhances thermal performance with an of R-Value 0.78 m2K/W
  • Highly-breathable membrane with low Sd value (0.08 m)
  • Windtight and waterproof
  • Optimal UV Stability
  • Humidity controlling and insulating properties
  • Can be easily recycled due to the PP material
  • Cost savings

Application

  • External use
  • Roof and wall applications
  • Onsite or offsite construction
  • Timber frame, masonry and any type of buildings

Technical Data

WEIGHT ISO 536 150 G/M²
R- VALUE (THERMAL RESISTANCE)**
(Aged)
(Unaged)		 BS ISO 9869

0.78M² K/W
0.80M² K/W
EMISSIVITY
(Aged)
(Unaged)		 BS EN 15976

<0.05
0.04
SD-VALUE  EN 1931 0.08 M
RESISTANCE TO WATER PENETRATION EN 13111 W2
TENSILE STRENGTH MD/CD* EN 12311-2 > 300/>250 N/50 mm
TEMPERATURE RESISTANCE -20°C TO 80°C

*MD = longitudinal CD = transversal
****R-Value of air cavity BS EN ISO6946 + BRE 443 calculated method is from 0.71(m2K)/W unaged or 0.67(m2K)/W aged;

Dimensions

  • 2.7m X 50m = 135m² (8’10-19/64” x 164’-1/2” = 1453 SF)
  • 3m X 50m = 150m² (9’ 10-1/3”” X 164’-1/2” = 1615 SF)
