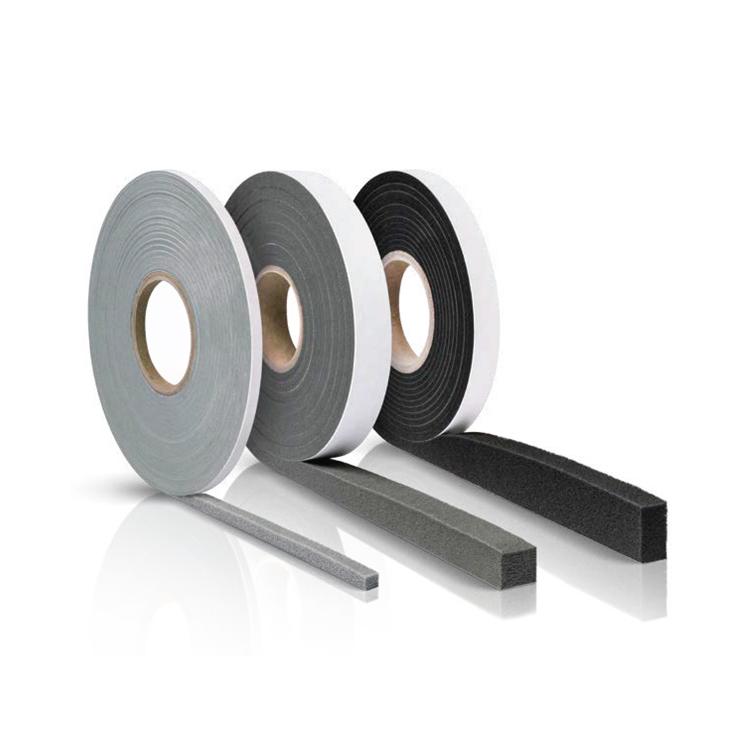

CONPRESeal BG1

Expanding Foam Tape

Partel CONPRESeal™ BG1 is an extremely durable joint sealing tape recommended for protection against driving rain, airtightness and resistance to weathering.

If you need perfectly sealed construction joints long-term, CONPRESeal™ BG1 is the right choice. Even after an outdoor weather test over more than 15 years in the joint.

Buy Now

Why Partel CONPRESeal BG1?

ASTM Tested Hurricane Tested

  • Extremely durable, exceeds the requirements for protection against driving rain, airtightness and resistance to weathering according to the highest European standard for joint sealant tapes DIN 18542:2009
  • Passed the “Hurricane-Test” with up to 9000 Pa wind pressure and 1050 Pa resistance to driving rain
  • 15 years function guarantee (tested and certified for a field installation after 15 years in service)
  • Thermal conductivity λ = 0.0412 W/(m·K)
  • Resistance to driving rain ≥ 600 Pa
  • Joint sound insulation RST,W up to 59 dB (installed in two layers)
  • Excellent thermal and sound insulation
  • Long-term weather resistance
  • Windproof
  • Breathable tape
  • Very low emissions, no VOC – EC1 Plus

Application

  • Ideal for easy and reliable sealing of windows and doors for wood construction, prefabricated construction masonry, framework construction, and concrete construction
  • Partel CONPRESeal BG1 is also suitable to seal facade joints made of brick, concrete, ACM panels, and curtain wall

Dimensions

Available in various dimensions. Typical tape joint dimensions are 1/4 -1/2” and 3/8 – 5/8”

  • 10mm x 5m /  Joint width 5-10mm (3/8″ x 16′ 4/32″ / Joint 7/32”-3/8”)
  • 10mm x 7.5m / Joint width 3-7mm (3/8″ x 24′ 7/32″ / Joint 1/8”– 9/32”)
  • 15mm x 4.3m  / Joint width 7-12mm  (5/8″ x 14′ 1/64″ / Joint 9/32”-15/32”)
  • 20mm x 3m / Joint width 8-15mm (3/4″ x 9′ 10 1/8″ / Joint 5/16”-5/8”)
  • 20mm x 5m / Joint width 10-18mm (3/4″ x 16′ 4/32″ / Joint 3/8”-11/16”)

Datasheet
