Thermal break threshold unit
ALMA-T by Partel is an award winning complete thermally broken threshold unit designed for the modern low energy building.
ALMA-T by Partel is an award winning complete thermally broken threshold unit designed for the modern low energy building.
ALMA-T is compliant with PART A, L, M and is also architecturally designed. Superior materials are used throughout from market-leading structural and thermal insulation to grade 316 SS. ALMA-T assists with fenestration installation and also helps achieve airtightness.
One unit for multiple requirements. Strong enough to support all doors/windows and thermally broken to passive house levels.

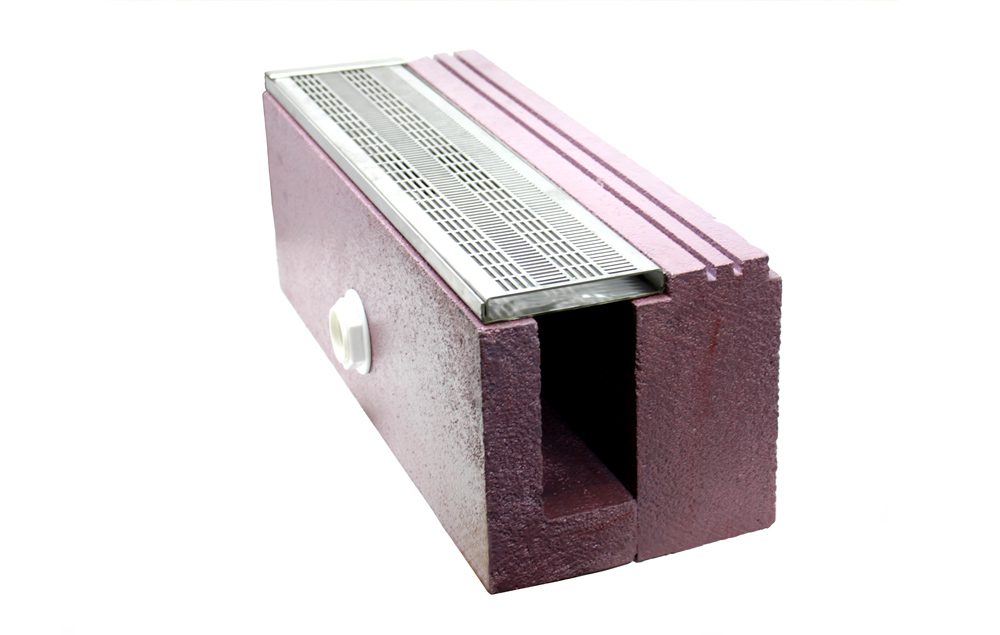

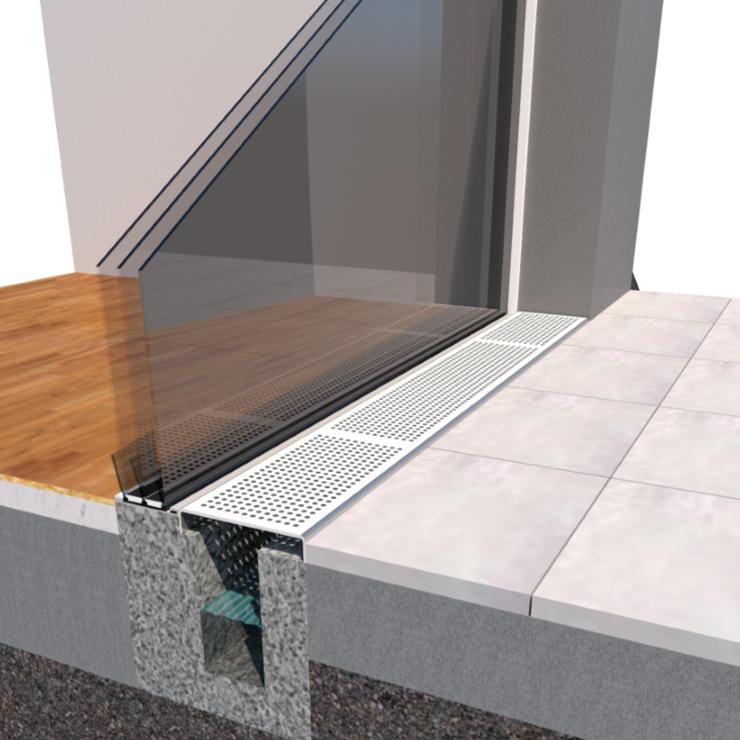

ALMA-T can be used underneath doors and windows in timberframe, steel frame, masonry, solid wall, retrofit, and commercial buildings. It can be used with or without an integrated drainage channel.
ALMA-T is designed to support all traditional fenestration weights and can achieve PSI values of 0.029 W/(mk)
Colour | Purple | |
Recommended stress level (Under service load) | 0.38 N/mm2 | |
Thermal conductivity | 0.038 (W/mK) | |
Fire Classification to EN 1305 | E | |
Elongation at max force | >10% | |
Average stress at 5.0% /2.0% | 0.92 | |
Psi Values | from 0.029 |
